H05V-K (300/500 V)
H07V-K (450/750 V)

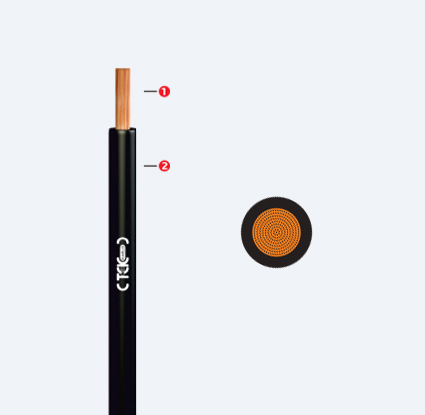

CONSTRUCTION
Conductor
Fine-stranded copper (Class 5)
Insulation
Polyvinyl chloride
SPECIFICATION
Max. short circuit temperature
Max. operating temperature
Min. bending radius
if D<8 then 4xD
if 8<D<12 then 5xD
if D>12 then 6xD
if 8<D<12 then 5xD
if D>12 then 6xD
Flame propagition test on single cable
EN 60332-1
AC test voltage
Rated voltage Uo/U
ROHS & REACH compliant
Lead free
APPLICATIONS
Used in closed and dry areas, switch and distribution boards, and also used for moving installations and equipments.
TECHNICAL DATA ( CU/PVC )
| Nominal Cross Section mm² |
Overall Diameter mm approximately |
Net Weight kg/km approximately | Conductor DC Resistance at (20°) max. ohm/km | Current Carrying Capacity in | |
|---|---|---|---|---|---|
| Condouit (A) | Air (A) | ||||
|
H05V-K (3000/500 V)
|
|||||
| 0,5 | 2,0 | 9 | 39 | - | - |
| 0,75 | 2,2 | 12 | 26 | - | 16 |
| 1 | 2.4 | 13 | 19,5 | 11 | 20 |
|
H07V-K (450/750 V)
|
|||||
| 1,5 | 2,8 | 19 | 13,3 | 14,5 | 24 |
| 2,5 | 3,4 | 30 | 7,98 | 19,5 | 32 |
| 4 | 3,9 | 44 | 4,95 | 26 | 42 |
| 6 | 4,4 | 63 | 3,30 | 34 | 54 |
| 10 | 6,1 | 112 | 1,91 | 46 | 73 |
| 16 | 7,4 | 169 | 1,121 | 61 | 98 |
| 25 | 9,0 | 251 | 0,780 | 80 | 129 |
| 35 | 10,9 | 369 | 0,554 | 99 | 158 |
| 50 | 12,7 | 528 | 0,386 | 119 | 198 |
| 70 | 14,7 | 730 | 0,272 | 151 | 245 |
| 95 | 16,9 | 969 | 0,206 | 182 | 292 |
| 120 | 18,8 | 1212 | 0,161 | 210 | 344 |
| 150 | 21 | 1521 | 0,129 | 240 | 391 |
